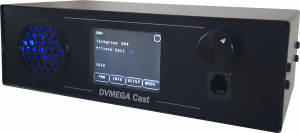

DVMEGA Cast

AMBE3000 based Multimode IP radio for DMR, D-Star and Fusion. Based on standard DVMEGA AMBE3000 shield. Radio has a powerfull 3 Watt enclosed speaker and according amplifier. Rotary encoder and 2.4″ touchscreen for operation. Quick menu is accessible via mic buttons. Host system is based on Nano-PI with PI-Star pre-installed.

Technical data

– Dimension 200 X 105 X 64 mm.
– Weight 0,8 Kg.
– Power supply 12 Vdc, 0,8 A.
– DVSI’s full duplexAMBE+2™ Voice coder.
– 3 Watt speaker.
– D-Star, DMR and Fusion RX and TX.
– Configuration via web interface.
– Firmware upgrade via web interface.
– Ethernet connection via cable and WIFI.
– Powder coated galvanized steel body.

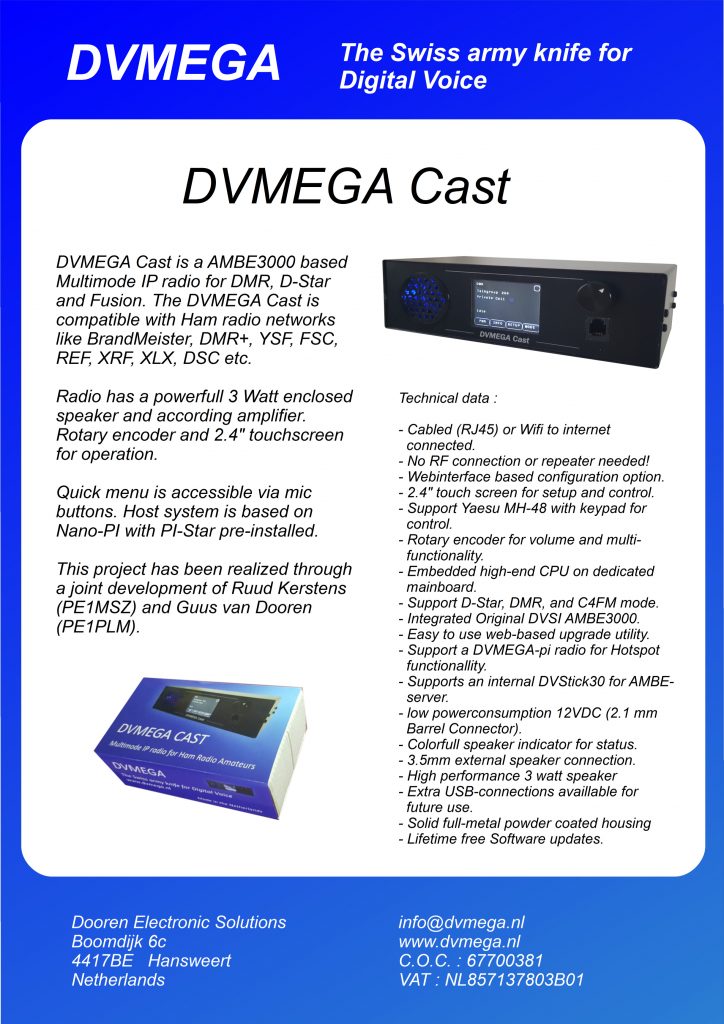

Product information letter

(Click on photo for PDF version.)



Registration

Registration of your product is required only to get access to updates. Unregistered products have full function without any restriction.

DVMEGA Cast registration server

Updates

DVMEGA Cast update server

Write SD card image

DVMEGA Cast write SD card instruction

Manual

manual DVMEGA Cast (English)

manual DVMEGA Cast (German, older version)

manual DVMEGA-Cast-(French, older version)

manual Radio Hotspot upgrade instructions

manual AMBE Server upgrade instructions

Display source

Source file Nextion Display
